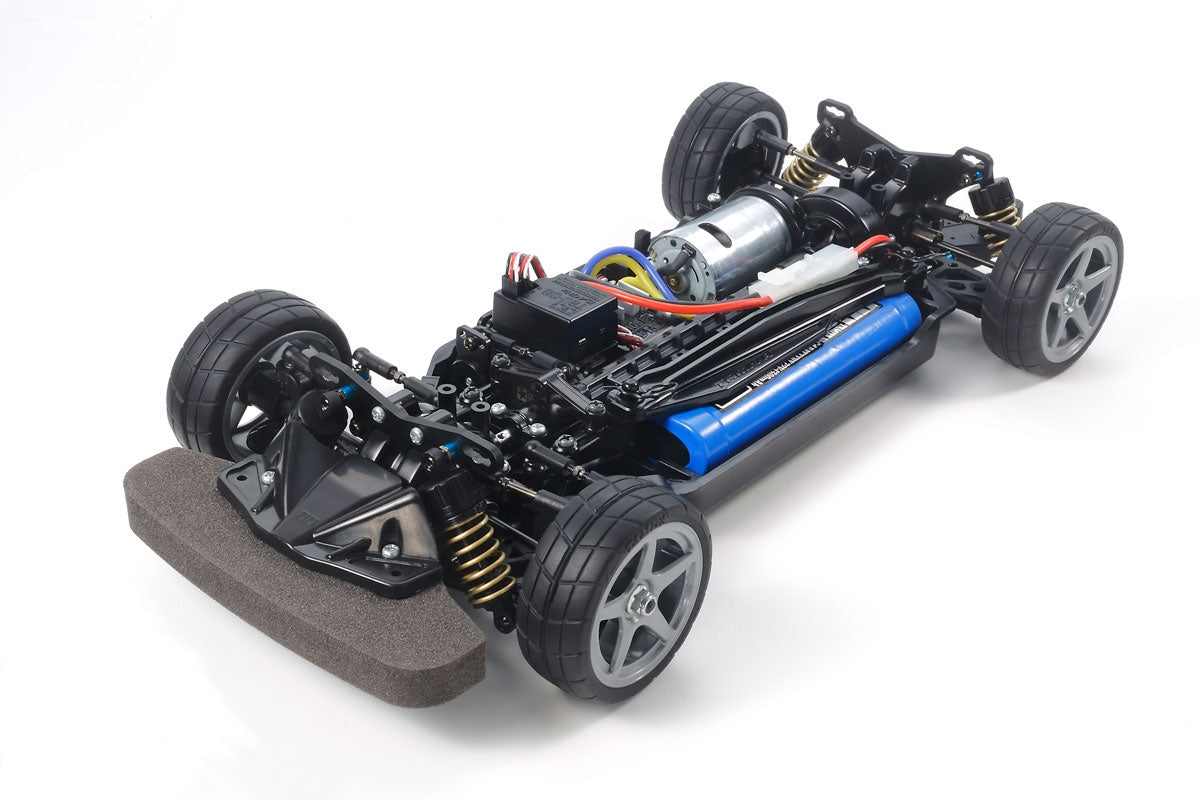

Tamiya RC TT-02 Type S Chassis Kit - Item #58600

Tamiya RC TT-02 Type S Chassis Kit - Item #58600

1/10 Scale 4WD

Sporty Evolution of the TT-02!

This sporty evolution of the TT-02 chassis sees the efficient shaft-driven 4WD unit given newly-designed parts and gives users the ability to make setup adjustments across the board, making it great for racing! It is equipped with long reversible suspension arms, and rigid metal suspension mounts.

The rear is set up with 3°of toe-in. CVA oil dampers are attached to specially-designed 3.0mm thick FRP damper stays, with optimum damper angle and rebound stroke providing excellent road holding. Turnbuckle upper arms and steering linkage allow fuss-free adjustment of camber and front toe. Power loss is minimised by the use of full ball bearings and metal cup joints and drive shafts.

Featured Components

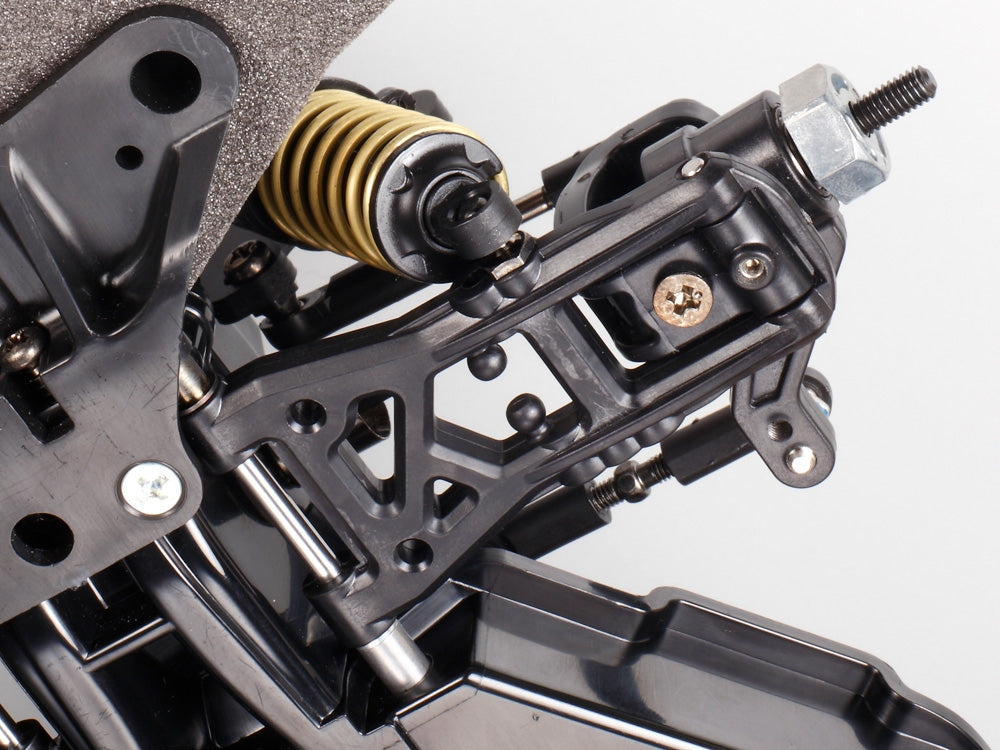

★Reversible Suspension Arms

★CVA Oil Shocks

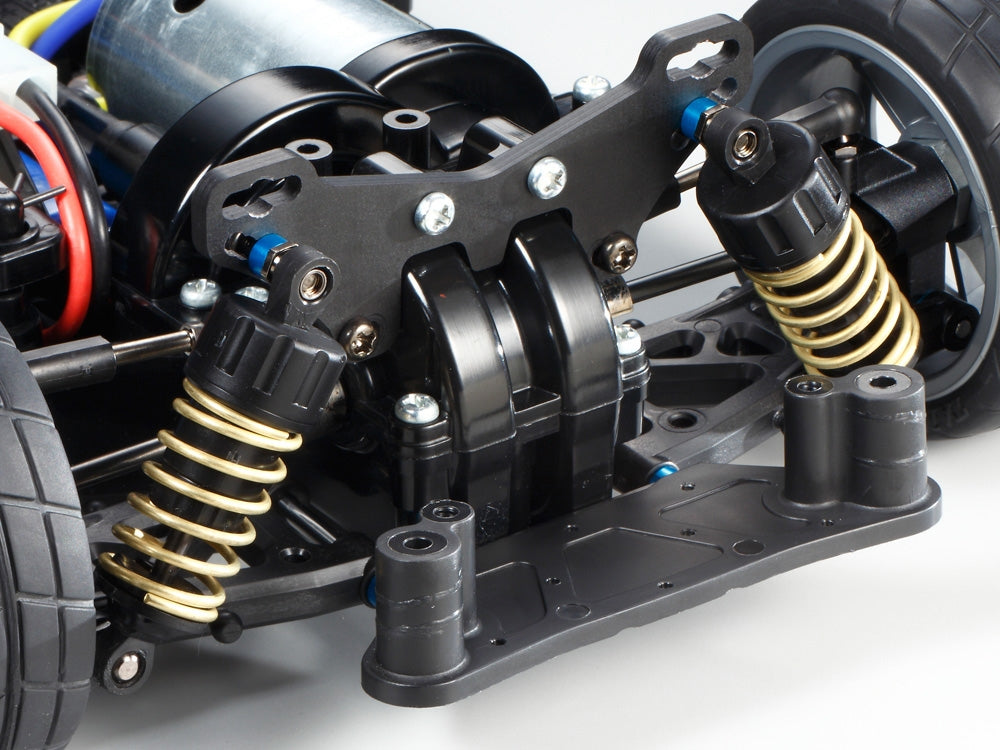

★FRP Front & Rear Damper Stays (newly-designed)

★Metal Suspension Mounts (w/3°rear toe-in)

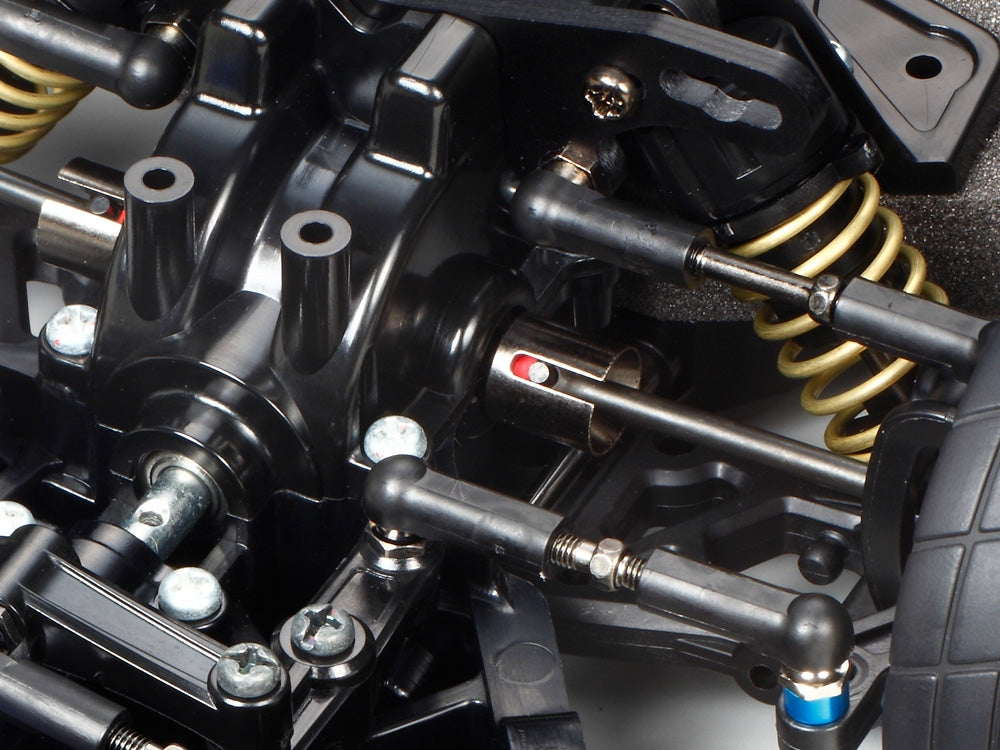

★Metal Wheel Axles, Gearbox Joints & Drive Shafts

★Full Ball Bearings

★Turnbuckle Upper Arms & Steering Linkage

★Die-Cast Metal Hex Wheel Hubs

Features:

• 3mm thick Front/Rear FRP Damper Stays (NEW part)
• Metal Suspension Mounts (NEW part)

• Item 51297 Reversible Suspension Arms (Long)
• CVA Oil Shocks
• Turnbuckle Shaft Front/Rear Upper Arms
• Turnbuckle Shaft Steering Tie-Rods
• Type 540 Torque Tuned Motor
• Item 51023 Medium-Narrow Racing Radial Tires
• Metal Cup Joints Metal Drive Shafts
• Die Cast Aluminium Hex Wheel Hubs

*Requires: Body, Motor, ESC, 2-channel radio, steering servo, 7.2volt battery and compatible charger and Tamiya Paintto complete

SPECIFICATIONS

• Adjustable Gear Ratio Yes
• Bearings Shielded ball bearing
• Chassis Material ABS Plastic
• Chassis Type TT-02 Type S
• Construction Type Assembly kit
• Differential Type Gear
• Drive Type 4WD
• Electronic Speed Control (esc) Not Included
• Led Light Buckets No
• Motor 540-brushed type
• Required To Complete 2-channel radio, steering servo, ESC, 7.2-7.4volt battery & battery charger, Tamiya 190mm touring car body set, and Tamiya PS paint.
• Scale 1/10
• Shock Damper Oil-filled damper
• Special Feature 1 Item 51297 Reversible Suspension Arms (Long)
• Special Feature 10 Torque Tuned Motor
• Special Feature 2 3mm thick Front/Rear FRP Damper Stays
• Special Feature 3 Type 540 Torque Tuned Motor
• Special Feature 4 Metal Cup Joints Metal Drive Shafts
• Special Feature 5 Die Cast Aluminium Hex Wheel Hubs
• Special Feature 6 Turnbuckle Shaft Front/Rear Upper Arms
• Special Feature 7 Item 51023 Medium-Narrow Racing Radial Tires
• Special Feature 8 Rear toe-in is set to 3 degrees.
• Special Feature 9 Metal Suspension Mounts
• Suspension Fully independent double wishbone
• Terrain Use On-Road
