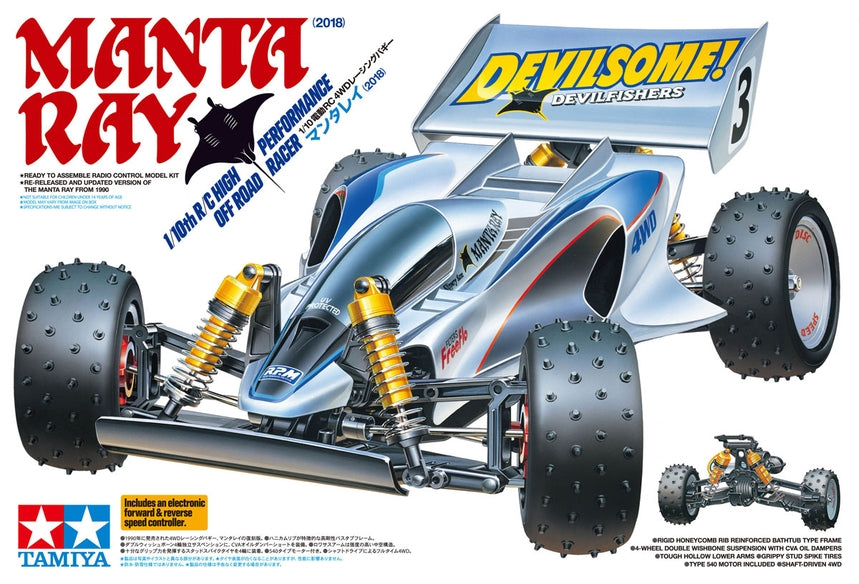

Tamiya RC Manta Ray Ltd Edition (2018) - Item #47367

Tamiya RC Manta Ray Ltd Edition (2018) - Item #47367

1/10 Scale 4WD

This R/C car made a name for itself when it was originally released in 1990, for being popular as both a beginner-level off-road buggy and an easily upgradeable car for veteran radio control hobbyists. The body is inspired by the sleek curved shape of Manta Rays and is made from lightweight and durable polycarbonate. Downforce is provided by the large rear wing and traction is provided with all-terrain spike tires mounted on dish wheels to provide excellent handling on off-road and grass surfaces.

All the radio components such as battery and R/C mechanisms are mounted in the centre of the honeycomb bathtub frame for optimum balance. The car’s bathtub chassis is mated with 4-wheel double wishbone suspension and equipped with CVA oil dampers for stable running in off-road conditions. 4WD drivetrain features front and rear sealed gearboxes with internal differential gear units for smooth cornering, and the gearbox itself features a quick-access hatch for convenient and hassle-free maintenance.

Features:

★Length: 395mm, Width: 250mm, Height: 145mm
★Wheelbase: 270mm
★Weight (excluding R/C equipment and battery pack): 1,100g
★Tread: 207mm (Front & Rear)
★Bathtub-type Chassis Frame
★Shaft-Driven 4WD
★Front/Rear 3-Bevel Differentials
★3-Piece Steering Tie-Rod
★4-Wheel Double Wishbone Suspension
★Tire Width/Diameter: 40/84mm (Front & Rear)
★CVA Short Oil Shock Units
★Gear Ratio=8.59:1 (with kit-included 21T pinion gear)
★Type 540 Motor
★Electronic Speed Controller (Included)

*Requires: 2-channel radio, steering servo, 7.2volt battery and compatible charger and Tamiya PS Paint to complete.

SPECIFICATIONS

• Adjustable Gear Ratio - Yes
• Bearings - Plastic bushing
• Body Material - Polycarbonate
• Body Stickers - Included
• Chassis Material - ABS Plastic
• Construction Type - Assembly Kit
• Differential Type - Gear
• Drive Type - 4WD
• Electronic Speed Control (esc)- Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor - 540-brushed type
• Required To Complete - 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
• Scale - 1/10
• Shock Damper - Oil-filled damper
• Suspension - Fully Independent Double Wishbone
• Terrain Use - Off-Road
