Tamiya RC VW Golf II GTI 16V - MB-01 - Item #58748

Tamiya RC VW Golf II GTI 16V - MB-01 - Item #58748

1/10 Scale 2WD

Here is another R/C kit with the MB-01 chassis – this time, long wheelbase and front motor / front-wheel drive (FF). The FF drivetrain Golf is one of Volkswagen’s most iconic cars. From its first appearance in 1974, the Volkswagen Golf has continued to develop and lead the worldwide compact car class.

In 1986, the Golf II GTI 16V was added to the second-generation model Golf II lineup which had made its debut in 1983. With a 1,781cc inline-4 DOHC 16-valve engine, a tuned car took part in global rally races, in 1986 becoming class champion.

The MB-01 Chassis

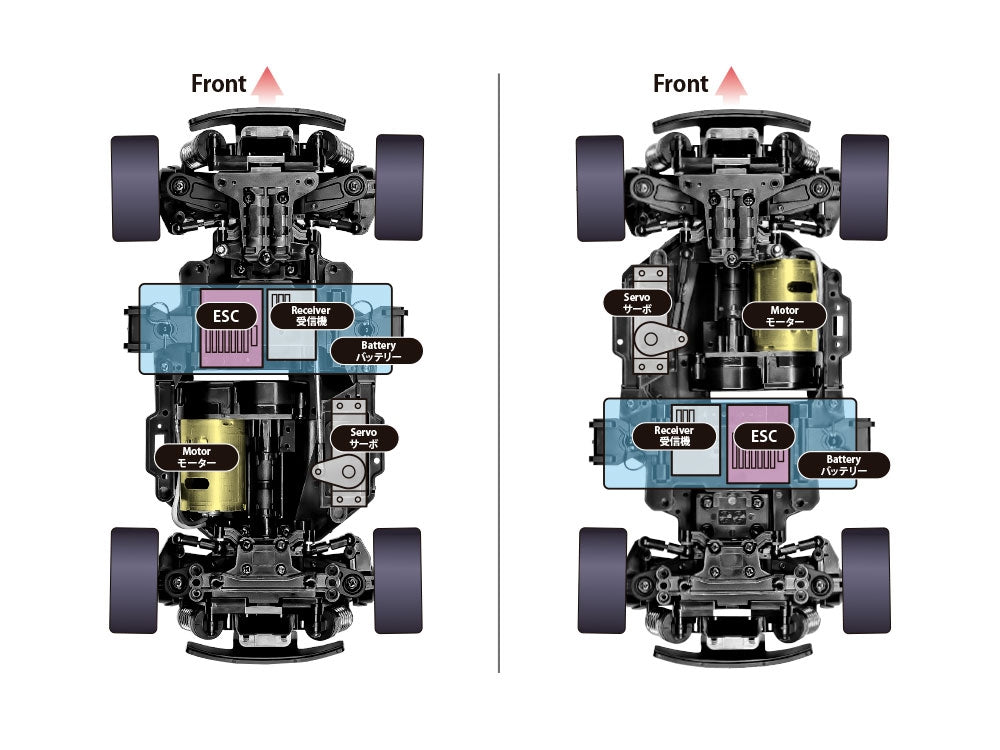

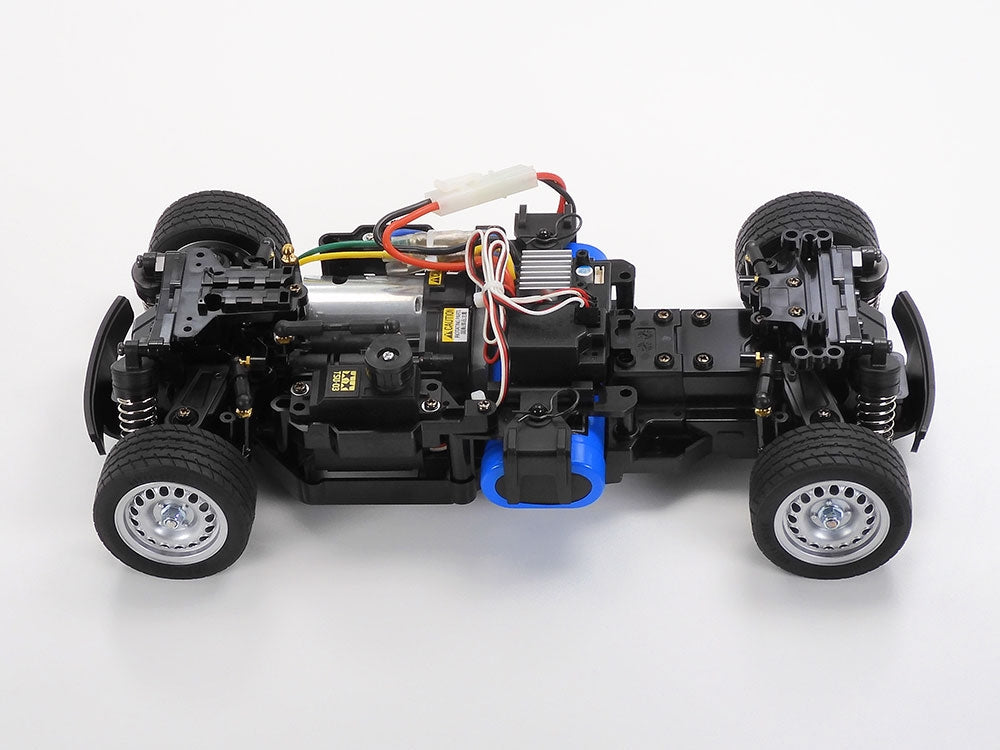

The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and front- or rear- wheel drive system.

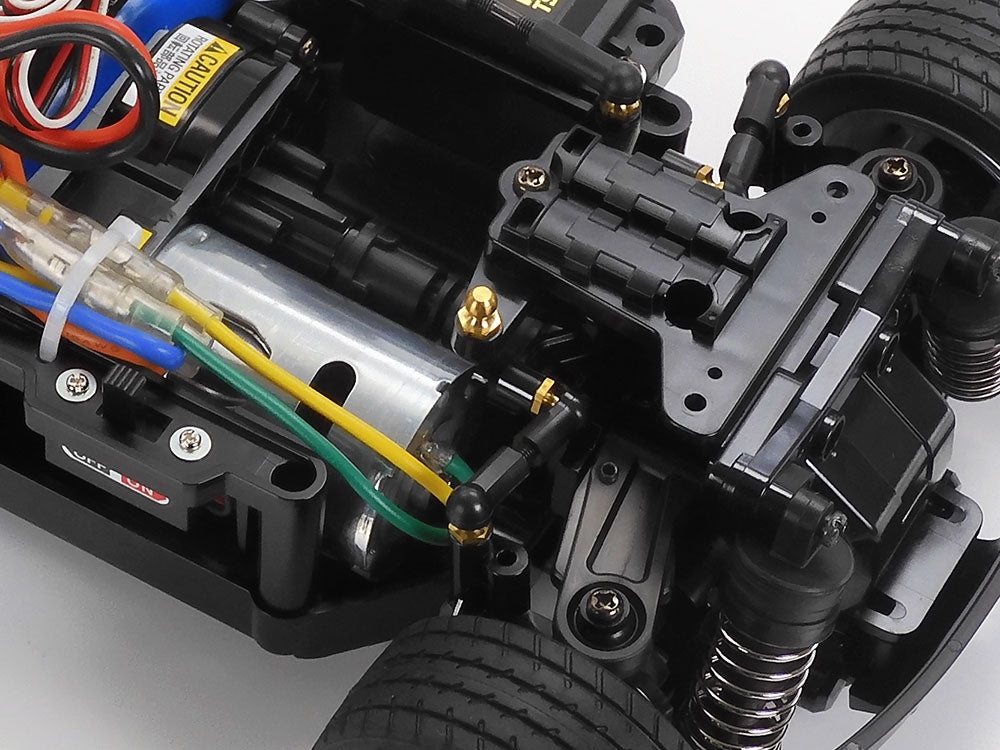

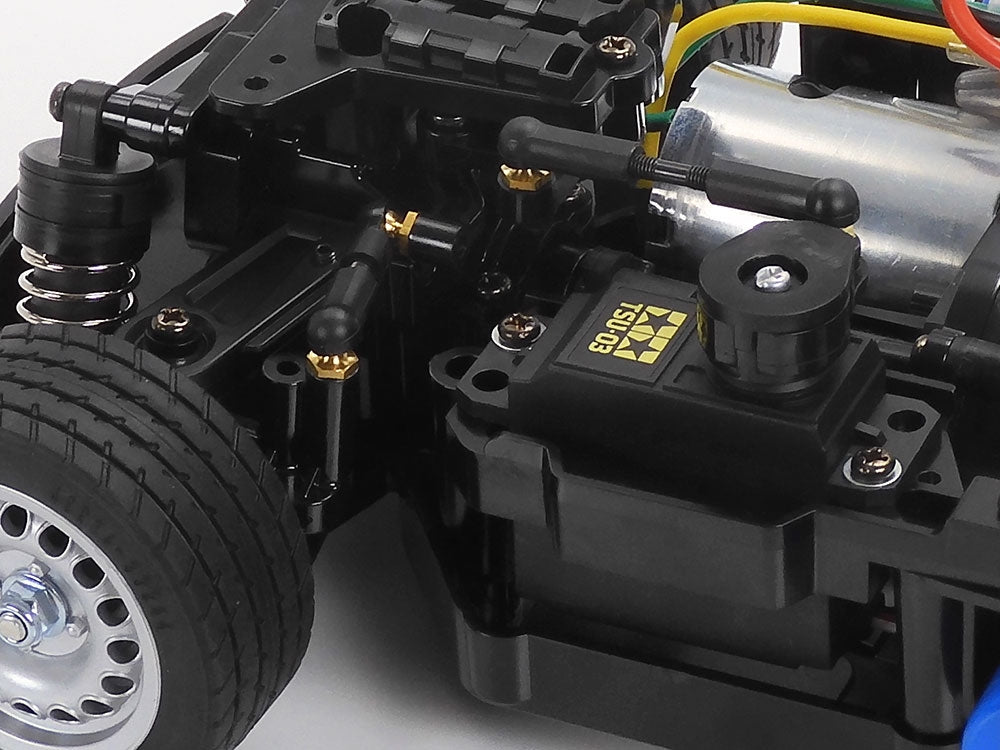

This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor, and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars.

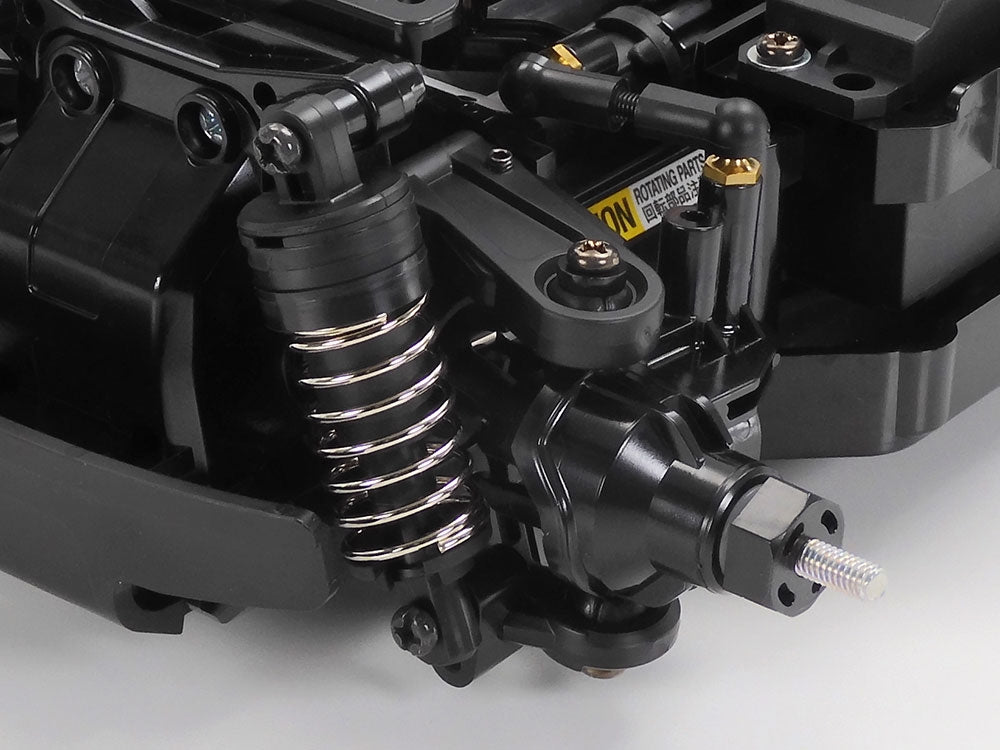

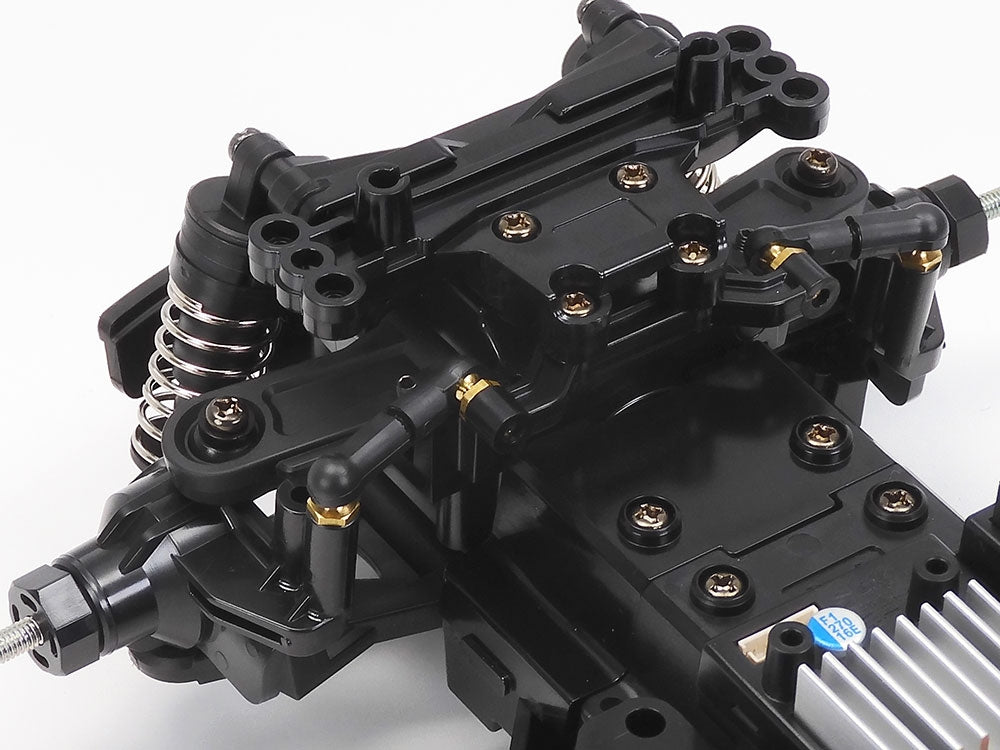

The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitised sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance

MB-01 Chassis Features

• This is a 1/10 scale R/C model assembly kit.
• Length: 383mm, width: 170mm, height: 138mm. Wheelbase: 239mm (Long).

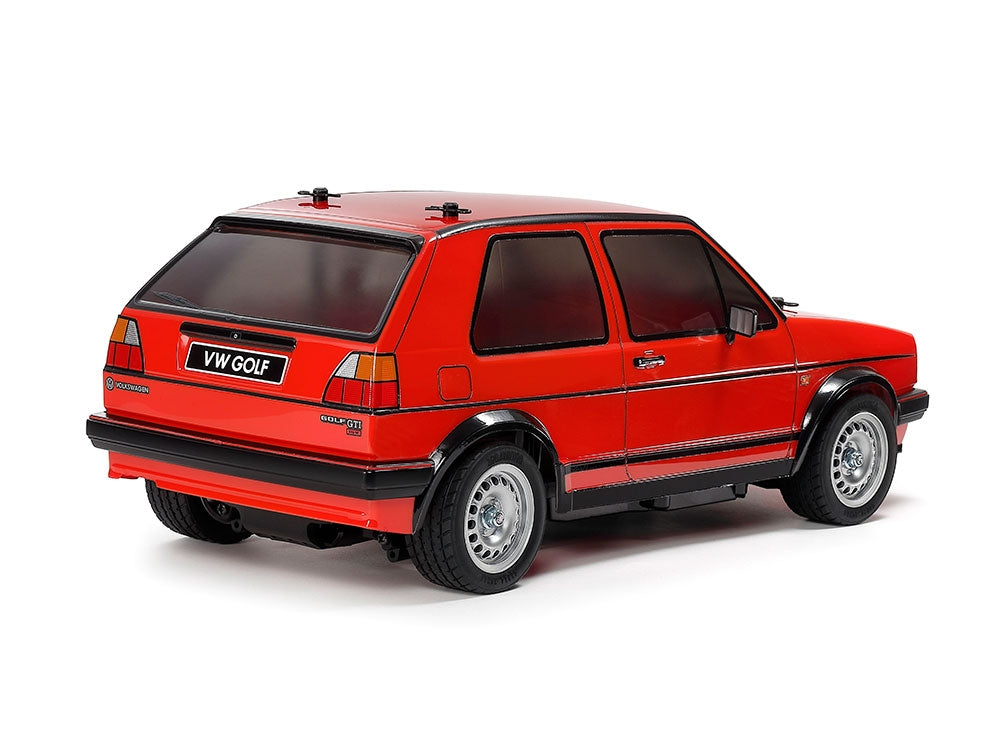

• Based upon Item 58714 (1/10 R/C Volkswagen Golf II GTI 16V Rally (MF-01X)), the form of the Volkswagen Golf II GTI 16V is authentically recreated in lightweight polycarbonate.

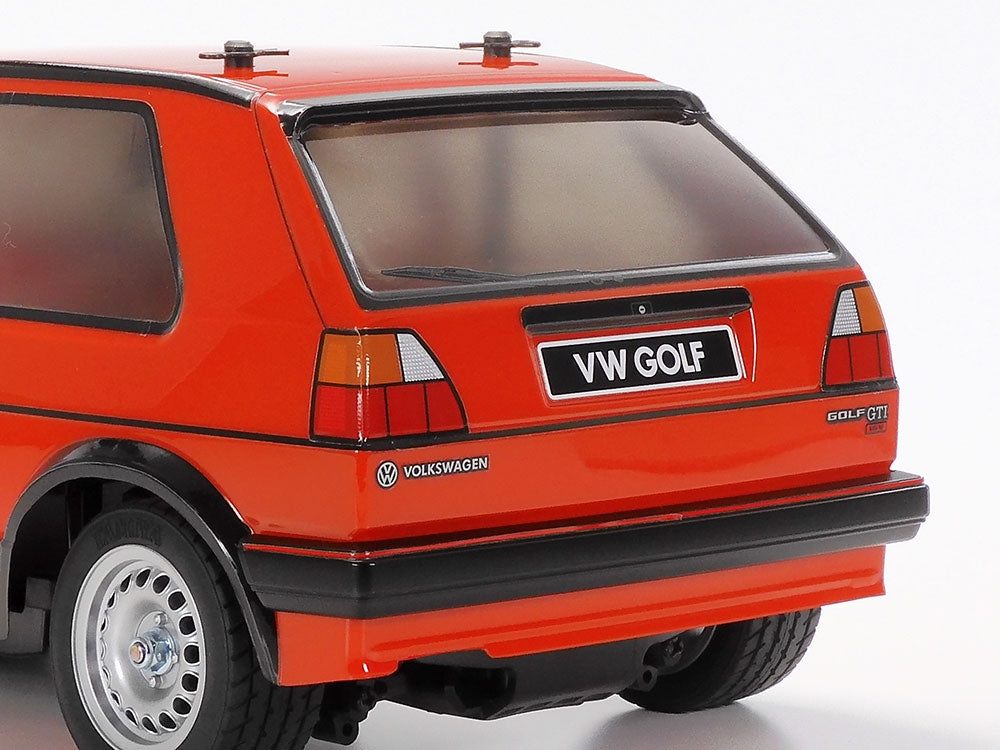

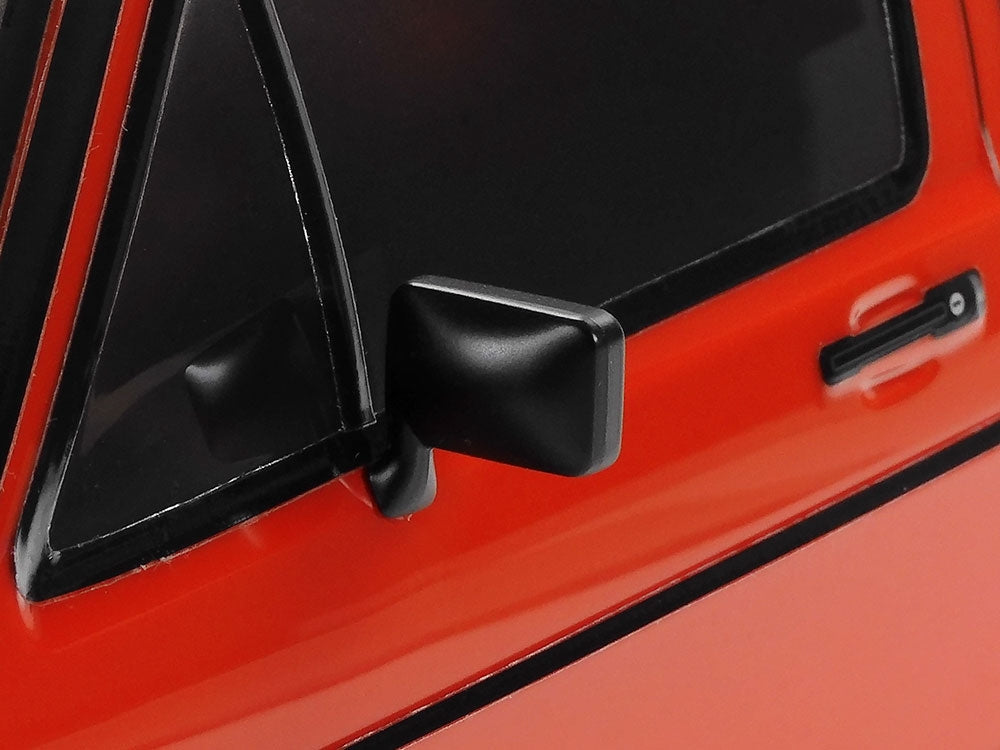

• Separate plastic parts moulded in black realistically depict side mirrors and bumpers.

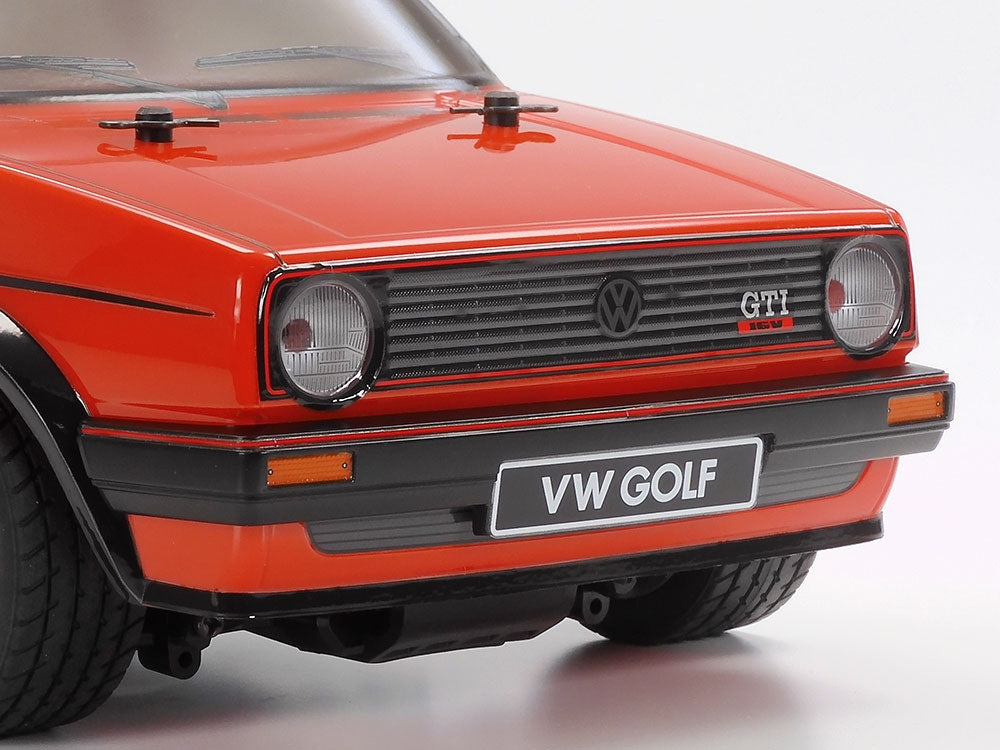

• Separate transparent parts capture headlights and taillights.

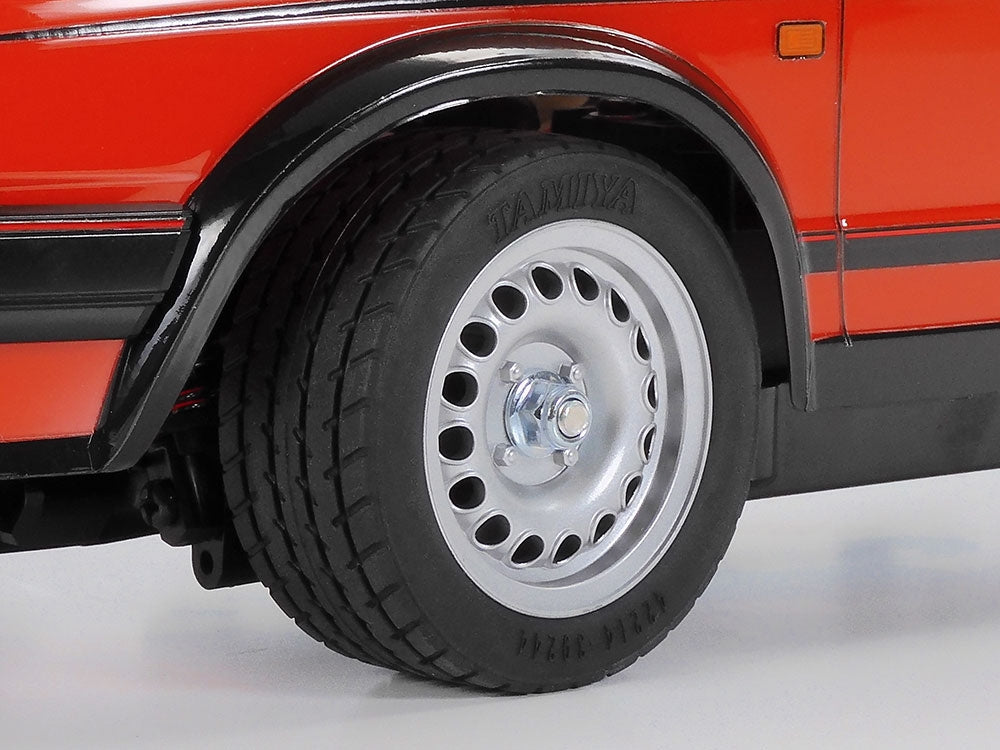

• Porous dish wheels are paired with radial tyres.

*Requires: 2-channel radio, steering servo, ESC, 7.2volt battery and compatible charger and Tamiya PS Paint to complete.

SPECIFICATIONS

• Adjustable Gear Ratio - Yes
• Bearings - Plastic bushing
• Body Material - Polycarbonate
• Body Stickers - Included
• Chassis Material - ABS Plastic
• Chassis Type - MB-01
• Construction Type - Assembly Kit
• Differential Type - Gear
• Drive Type - 2WD

• Motor - 540-brushed type
• Required To Complete - 2-channel radio, steering servo, ESC, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
• Scale - 1/10
• Shock Damper - Friction type
• Suspension - Fully Independent Double Wishbone
• Terrain Use - On-Road
